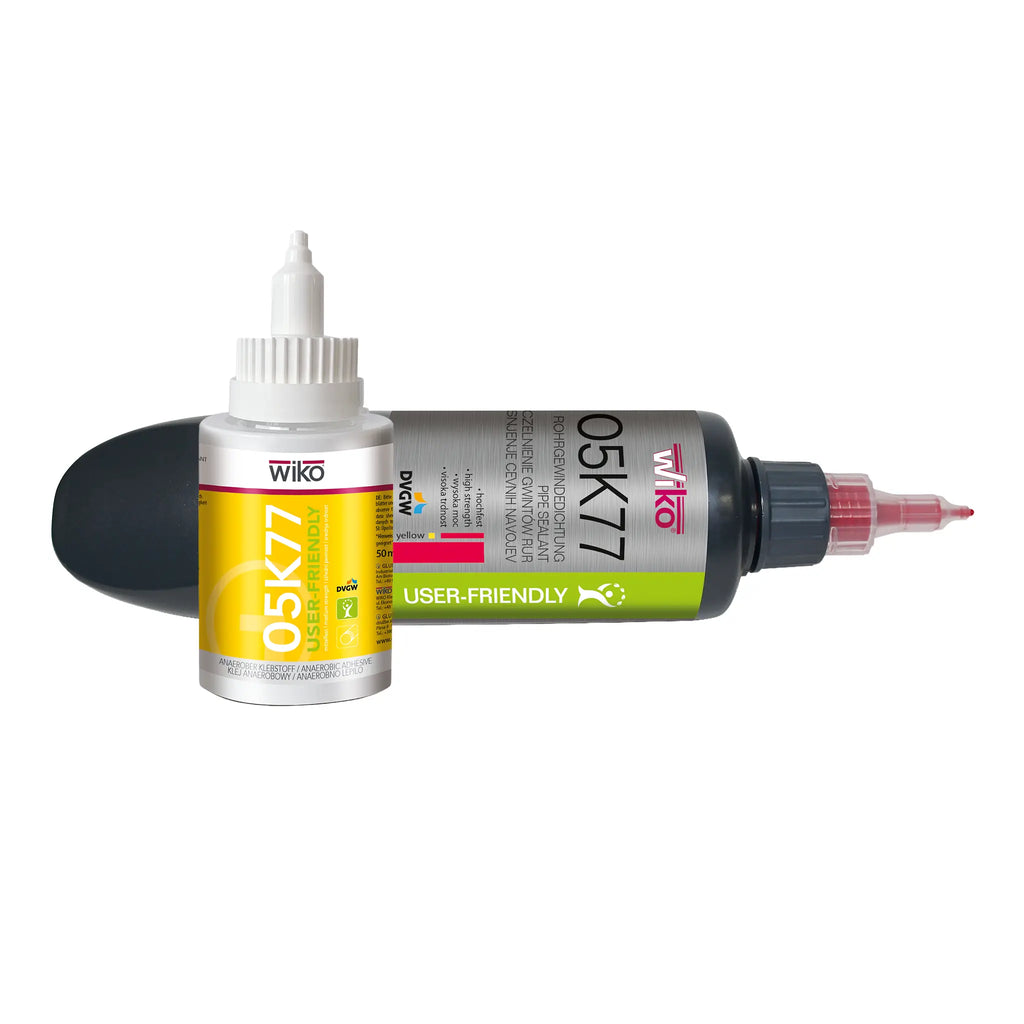

05K77UF - Pipe thread and hydraulic seal
102284
VPE
12
Properties
| Users | Private end users, Professional users/specialists |
|---|---|
| Type | adhesive |
| Content | 50ml, 250ml |
| Resistance | Solvent resistant, Acid resistant, UV resistant, Water resistant, Oil resistant |
| Packaging | tube, Concertina |
| Packaging size | 50ml, 250ml |
| Hazardous substance labeling | Without, User friendly |
| Shelf life | 24 months |
| Substrates | metal |
| Temperature resistance (°C) | Up to 180 |
| Viscosity | highly viscous |
| Processing time | Medium (5-15 min) |
Downloads
Blog Posts
The product hardening (polymerization) takes place with the exclusion of atmospheric oxygen (anaerobic) and the catalytic action of the metal (metal contact).
- DVGW approval (tested according to DIN EN 751-1 Class H)
- Seals conical/cylindrical pipe thread connections up to M80 (R3”), e.g. sprinkler systems and gas pipe systems
- Screw connections can be removed with tools
- Resistance to vibration and other stresses
Compared to conventional anaerobic adhesives, USER-FRIENDLY LINE products are completely label-free. In addition to a longer shelf life of 24 instead of 12 months, they also offer the user improved storage stability and increased temperature resistance of up to +180° C during use.
Properties
- Particularly user-friendly and environmentally friendly
- Without hazardous substance labeling
- Max. thread diameter: M80
- Hand tight after: 10 - 15 minutes
- Temperature range: -55 °C to +180 °C
- Viscosity: 20,000 - 40,000 mPas
